In the high-stakes world of modern engineering, safety is no longer a peripheral concern addressed at the end of a project. As systems in aerospace, autonomous transport, and energy become more interconnected and software-defined, the margin for error has vanished. Lifecycle Risk Management (LRM) is the sophisticated, end-to-end discipline of identifying, analyzing, and neutralizing hazards from the “napkin sketch” phase to the final decommissioning of a system.
This guide explores why a lifecycle-centric approach is the only way to build high-reliability systems in the 21st century, the methodologies that drive it, and the financial and operational benefits of treating safety as a continuous loop.
1. The Paradigm Shift: From Reactive to Proactive Safety
Traditionally, many industries relied on “Fly-Fix-Fly” methodologies – building a system, observing failures in the field, and then issuing patches or recalls. In 2026, this is commercially and ethically unsustainable.
The Financial Architecture of Risk
The “Economic Theory of Safety” suggests that the cost of safety is an investment in risk reduction. We utilize the Rule of Tens:
-
Concept Phase: Mitigating a hazard involves a simple change in a CAD model or a requirement document.
-
Design Phase: Mitigation might involve adding a redundant sensor or changing a material spec ($10\times$ cost).
-
Production Phase: Mitigation requires re-tooling factories and scrapping inventory ($100\times$ cost).
-
Operational Phase: A failure results in catastrophic liability, loss of life, and massive recalls ($1000\times$ cost).
By shifting the focus to Early Safety Analysis, organizations protect their balance sheets just as much as they protect their users.
2. The Living Hazard Log: The Pulse of the System
A pillar of lifecycle risk management is the Hazard Log (sometimes called a Hazard Tracking System or HTS). This is not a static PDF sitting in a shared drive; it is a dynamic, high-integrity database that serves as the “black box” of the system’s safety history.
Anatomy of a High-Integrity Hazard Log
To be effective, every entry in the log must contain:
-
Hazard Identification (ID): A unique, traceable code.
-
Environmental Context: Under what conditions (temperature, pressure, altitude) does this hazard exist?
-
Potential Mishap: What is the worst-case scenario if this hazard is triggered?
-
Causal Factors: Is this a hardware fatigue issue, a software logic error, or a human-machine interface (HMI) failure?
-
Initial Risk Index: The raw danger before any safety measures are applied ($Severity \times Probability$).
-
Mitigation Strategy: The specific engineering or administrative steps taken to reduce the risk.
-
Verification & Validation (V&V): Links to physical tests or simulations that prove the mitigation works.
-
Residual Risk Index: The final, “acceptable” risk level.
This year, many of these logs are integrated into Digital Twins, allowing safety engineers to simulate “What If” scenarios in real-time as the physical system ages in the field.
3. Methodologies for Hazard Analysis
How do we find what we don’t know? We use structured brainstorming and mathematical logic.
Fault Tree Analysis (FTA)
FTA is a “Top-Down” deductive approach. We start with a catastrophic event (e.g., “Brake System Failure”) and work backward to find all the combinations of component failures that could lead to it. We use Boolean logic (AND/OR gates) to calculate the exact probability of the event.
Failure Mode and Effects Analysis (FMEA)
A “Bottom-Up” inductive approach. We look at every single nut, bolt, and line of code and ask: “If this specific part fails, what happens to the whole system?” This is essential for hardware reliability and maintenance planning.
Functional Hazard Assessment (FHA)
Performed at the start of the lifecycle, FHA looks at the functions of the system rather than the parts. If the “Landing Gear Extension” function fails, how severe is the outcome? This guides the design team before a single part is even selected.
4. The Hierarchy of Controls: Strategic Risk Mitigation
When a hazard is identified, the safety engineer must choose how to neutralize it. We follow a strict hierarchy of effectiveness.
Elimination (Design-Out)
This is the pinnacle of safety. If a system uses a high-voltage battery that poses a fire risk, can we replace it with a solid-state battery that cannot catch fire? If you eliminate the hazard, you no longer need to monitor it.
Substitution
Replacing a hazardous material (like lead or asbestos) with a safer alternative. While it doesn’t always remove the risk of failure, it removes the risk of toxicity or environmental damage.

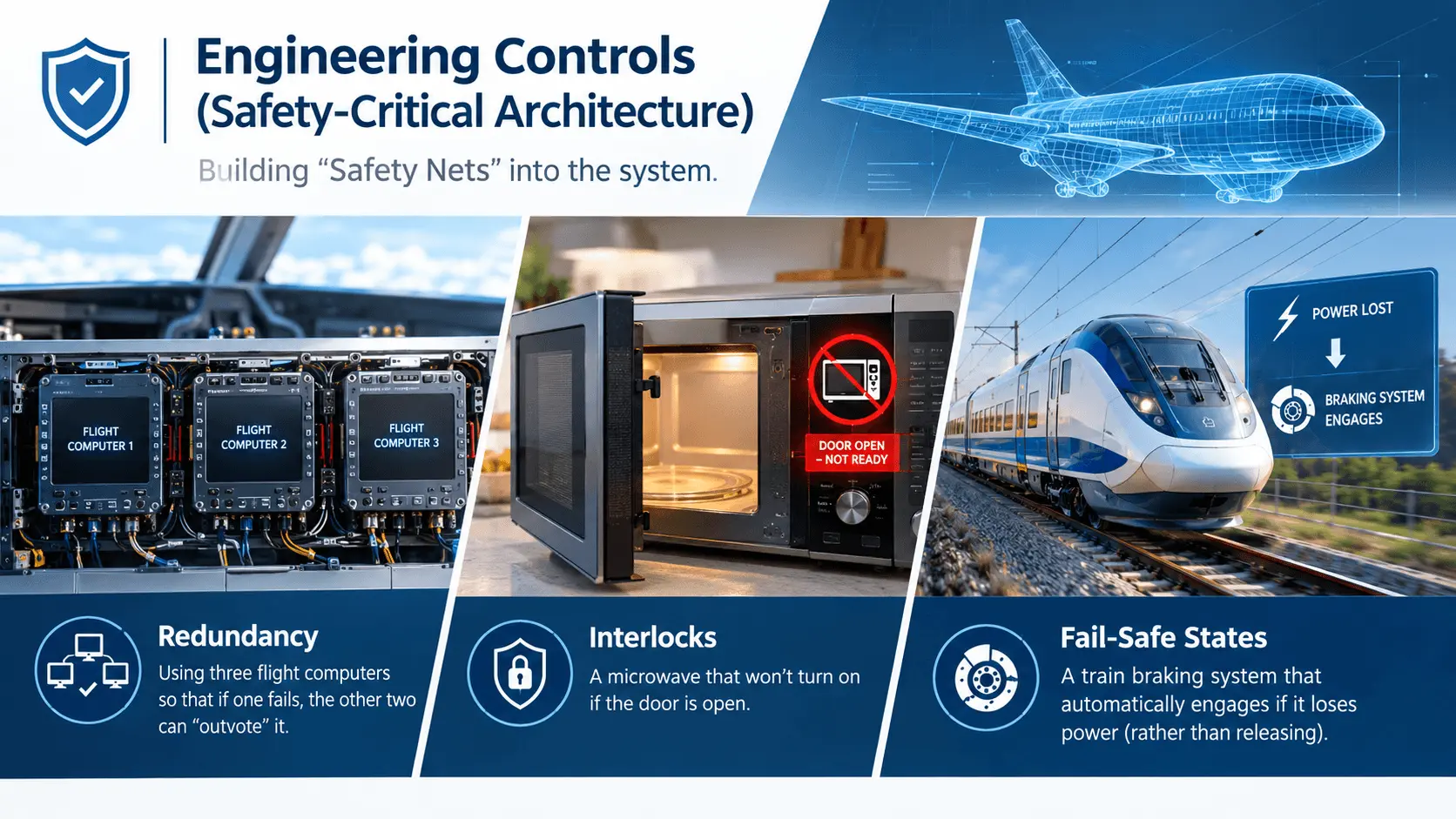

Engineering Controls (Safety-Critical Architecture)
This involves building “Safety Nets” into the system.
-
Redundancy: Using three flight computers so that if one fails, the other two can “outvote” it.
-
Interlocks: A microwave that won’t turn on if the door is open.
-
Fail-Safe States: A train braking system that automatically engages if it loses power (rather than releasing).
Administrative Controls and PPE
The most fragile layer because it relies on humans. It includes training, warning labels, and protective gear. While necessary, lifecycle management aims to minimize reliance on this tier.
5. Integrating Standards into the Lifecycle
Risk management does not happen in a vacuum. It is governed by global standards that provide the “Rules of the Road.”
-
IEC 61508: The foundational “Functional Safety” standard for all industrial sectors.
-
ISO 26262: The automotive standard that introduced ASIL (Automotive Safety Integrity Levels).
-
MIL-STD-882E: The gold standard for defense systems, emphasizing the “Safety Case.”
-
DO-178C / DO-254: The rigorous software and hardware standards for civil aviation.
These standards ensure that every organization speaks the same language when defining “Safe.”
6. People Also Search For
-
How does the system safety lifecycle reduce operational costs?
-
Difference between hazard analysis and risk assessment in engineering.
-
What are the five stages of the risk management lifecycle?
-
Key standards for functional safety in 2026 (ISO 26262, IEC 61508).
7. Frequently Asked Questions (Deep Dive)
1. What are the 5 stages of the risk management lifecycle?
The five stages are Identification, Analysis, Mitigation, Verification, and Monitoring. These steps ensure risks are controlled throughout the system lifecycle.
2. How is safety managed throughout a system’s lifecycle?
Through a Safety Management System (SMS). This is a framework of policies, procedures, and digital tools (like Hazard Logs) that ensure safety data is passed from the design team to the testing team, and finally to the operators in the field.
3. What is the difference between System Safety and Functional Safety?
System Safety is the “Big Picture.” It includes fire risk, sharp edges, toxic materials, and human error. Functional Safety is a subset; it focuses strictly on whether the electronics and software do their job correctly when a fault occurs.
4. Why is early safety analysis important in system design?
Because it prevents “Design Dead-Ends.” If you find a major safety flaw after you’ve built the system, you might have to start from scratch. Early analysis ensures the architecture is sound before you invest in expensive hardware.
5. How does AI affect lifecycle risk management?
AI is a “Double-Edged Sword.” We use AI to predict when a part will fail (Predictive Maintenance), but we also have to manage the risk of the AI making a wrong decision. AI Safety is now a major part of the lifecycle in autonomous systems.
6. What is the role of a “Safe State” in risk control?
A Safe State is the “Graceful Degradation” of a system. For a car, it might be pulling over to the shoulder. For a chemical plant, it might be venting pressure into a containment tank. Defining this state is a key part of the Design Phase.
7. How do international standards like IEC 61508 guide the lifecycle?
They provide the “Rigors of Proof.” Depending on how dangerous a system is, these standards tell you exactly how much documentation, testing, and independent auditing you must perform to be legally compliant.
8. What happens to risk management during decommissioning?
It shifts to Environmental and Physical Safety. How do we drain the hydraulic fluid without spills? How do we dispose of radioactive or toxic components? The lifecycle isn’t over until the system is fully recycled or destroyed.
Conclusion: Building a Culture of Safety
Lifecycle Risk Management is more than a set of tools; it is a culture. It requires breaking down the silos between “Design Engineers” and “Safety Engineers.” When risk is managed from day one, the result is a system that is not only safe but also more reliable, more profitable, and easier to certify.
